We are proud to present our newly developed Plenum for the Porsche 997.2 Turbos!
With this high flow Plenum, the performance of your 997.2 will increase!
- do88 plenum is Y-shaped for improved air flow. Our plenum flows 5,4% better compared with the OEM plenum (IPD 2,1%) (see diagram below).
- High quality casting pipe with CNC-machined connections
- Smooth internal surface for best air flow
- Comes with all necessary accessories for installation

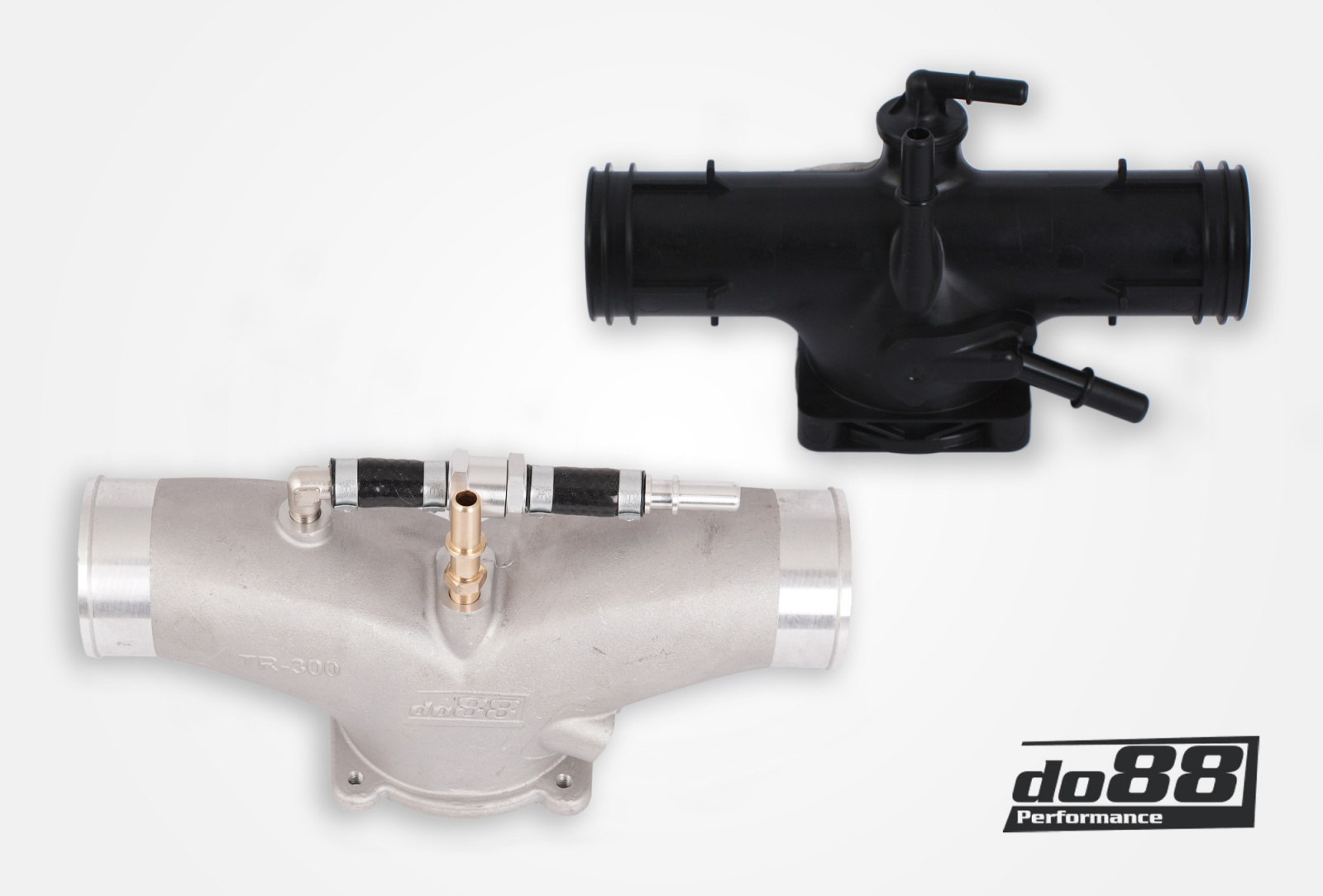

The OEM 997.2 Turbo plenum is T-shaped which means the air flow from the throttle body abruptly change direction when it´s divided to each side of the intake manifolds. It makes sense to design a plenum with a Y-shape instead of a “bank into the wall” T-shape.
During the development process of this plenum we spent a lot of time with flow simulations of the internal Y-shape design. We made both flow simulations on our CAD system and real tests on our own SuperFlow SF-1020 flow bench on 3D-printed models.
To be able to manufacture this final design we choose to make a 3D freeform designed casting. This construction adds a lot of performance but not so much of extra weight. We designed the outside of the plenum to add as little weight as possible to the plenum.

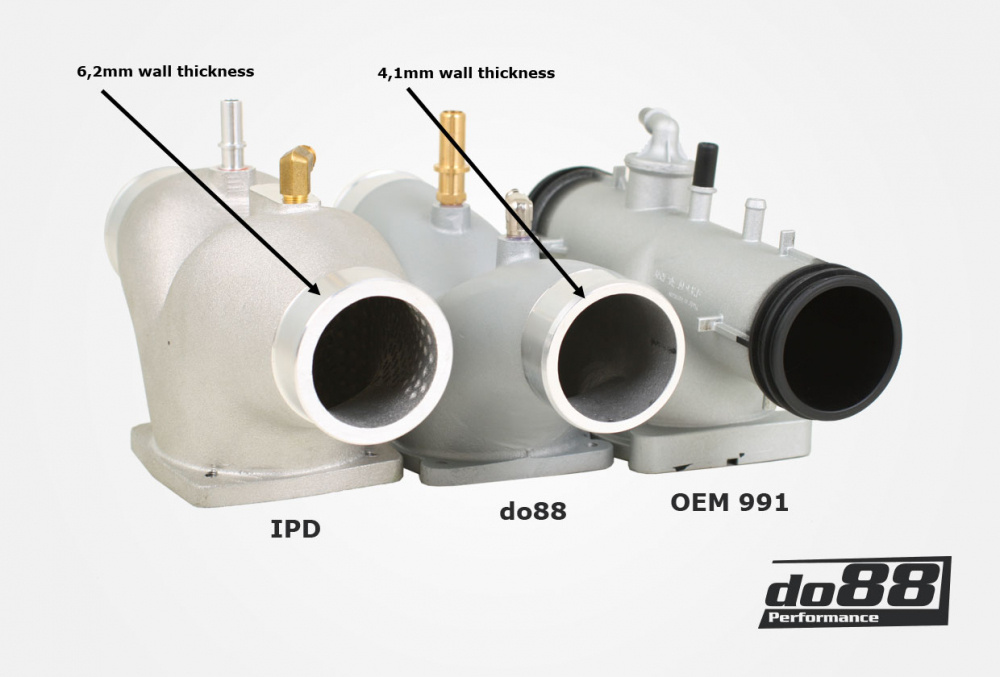

do88 Performance Plenum weight 0,66 kg (1,46 lb) OEM plastic pipe weight 0,27 kg (0,60 lb) and competitor cast performance pipe (IPD) weight 1,13kg (2,49 lb)!
Be aware of that the OEM parts was designed for the power level the car was built for originally. A power increase may cause your stock plenum to hold back the power of your engine. So even on an engine with a software tune the do88 performance plenum will give a performance increase!

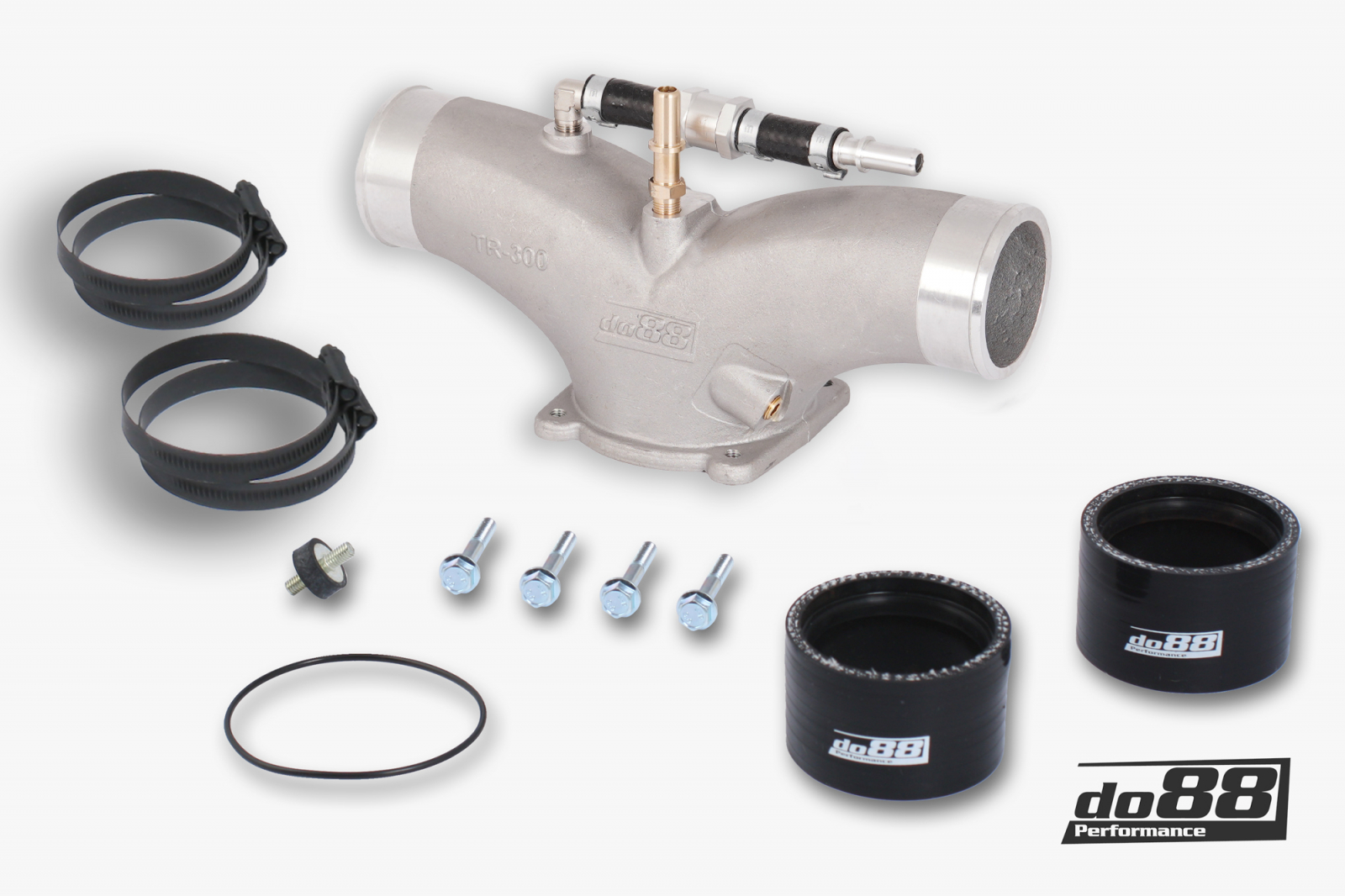

do88 performance plenum comes as a complete package with all parts necessary for installation.
Porsche 997.2 Turbo / Turbo S
Year models: 2010-
|OEM reference:||9A111003770, 9A211003702, 9A211013702|
This diagram shows the air flow at different pressure drops of do88 Plenum compared to the OEM Plenum:
